Lindhaus PB12 Eco Force Parts

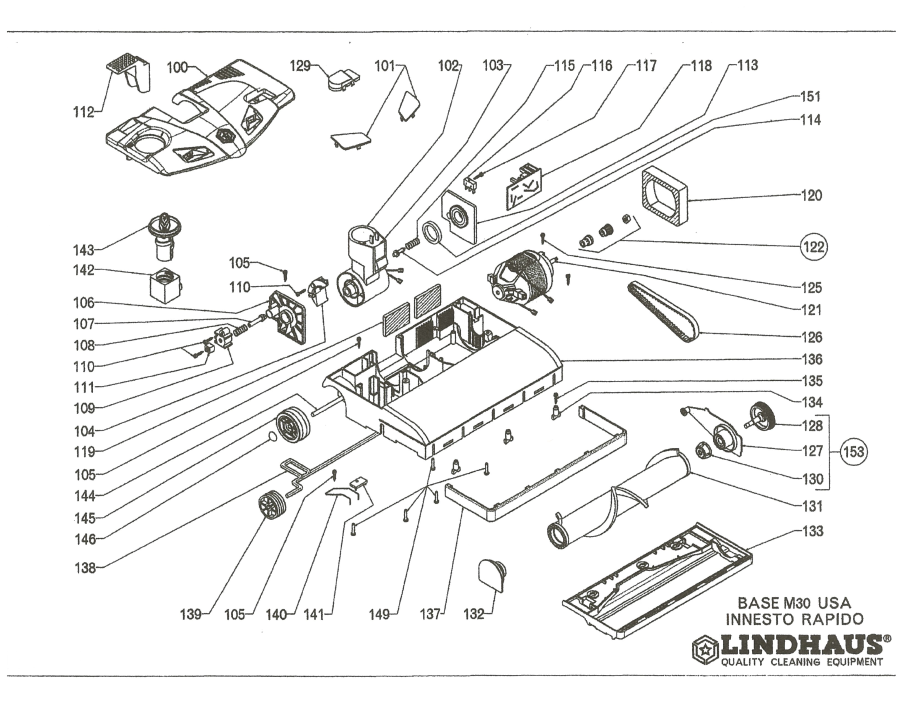

153. Transmission Support [complete] 112. Foot Pedal Dark Gray 143. Adjusting Knob Dark Grey142. Brush Height Adjuster 106. Support Right Joint107. Plunger 108. Spring, Detente110. Screw 2.9×16 (Single) 111. Slide109. Bushing104. Joint Pin Slide119. Exhaust Filter 105. Screw 3.9×13 (Single) 144. Rear Axle 145. Rear Big Wheel Rubber146. Wheel Retainer Cap138. Front Axle 139. Front Wheel Rubber105. Screw 3.9×13 (Single) 140. Spring (Axle) 141. Spring Stop Plate 149. Blocking Joint Quick Release 137. Bumper M30 (12”) Dark Gray132. Roller Support M30 (12″) 133. Brush Shoe Plate M30 (12″) 131. Brush Roller M30 (12″) 1 Bristle 0,25 Black + Insert [standard]130. Drive Joint Base 127. Transmission Support With Bearings 128. Pulley With Shaft134. Roller Cover Clip (Single) 135. Screw 3.5×9.5 Tg (Single) 136. Base Housing M30 (12″) Marble White With Clips 126. Timing Belt 7mm 121. Brush Motor 100/120v (12″-14″)125. Screw 3.9×16 (Single) 122. Pinion+nut Complete120. Filter Brush Motor114. Switch Activator Pin 151. Felt Ring113. Support Left Joint118. Circuit Board M30 (12″)117. Screw 2.2×16 (Single) 116. Microswitch 115. Spring Switch Activator Pin 103. Joint Kit (Button+fast+guide+cover) (1 Pc)102. Joint Complete With Cord (D.32mm 1-1/4″)101. Lens Set Red And Green129. Side Light Cover 100. Base Housing Cover White105. Screw 3.9×13 (Single) 110. Screw 2.9×16 (Single) Filters Sort results
Reset Apply
Image | Name | Description | Price | Quantity | Add to cart |
|---|---|---|---|---|---|
 | Lindhaus PB12″ Base Housing Cover White – 083963681 | $50.00 | | ||
| | Lindhaus PB12″ Lens Set Red And Green [not As Shown On Diagram 083950081 | $8.60 | | ||

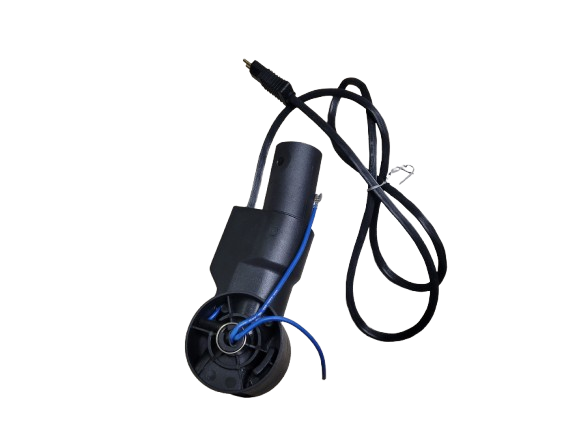

 | 102. Lindhaus Pb12″ Joint Complete With Cord (D.32mm 1-1/4″) – 088720380 | $93.80 | | ||
| | 103. Lindhaus PB12″ Joint Kit (Button+fast+guide+cover) (1 Pc) – 083940080 | $19.20 | | ||
| | 104. Lindhaus PB12″ Joint Pin Slide – 002280305 | $2.80 | | ||
| | 105. Lindhaus PB12″ Screw 3.9×13 (Single) – 085590009A | $9.60 | | ||
| | 105. Lindhaus PB12″ Screw 3.9×13 (Single) – 085590009A | $9.60 | | ||
| | 106. Lindhaus PB12″ Support Right Joint – 080430381 | $15.80 | | ||
| | 107. Lindhaus PB12″ Plunger – 000840036 | $2.40 | | ||
| | 108. Lindhaus PB12″ Spring, Detente – 010390009 | $1.20 | | ||
| | 109. Lindhaus PB12″ Bushing – 000650036 | $1.60 | | ||
| | 110. Lindhaus PB12″ Screw 2.9×16 (Single) – 085610009A | $8.60 | | ||
| | 111. Lindhaus PB12″ Slide – 000970305 | $1.00 | | ||
| | 112. Lindhaus PB12″ Foot Pedal Dark Gray – 001920105 | $10.40 | | ||
| | 113. Lindhaus PB12″ Support Left Joint – 080440381 | $15.80 | | ||
| | 114. Lindhaus PB12″ Switch Activator Pin – 000670036 | $1.00 | | ||
| | Lindhaus PB12″ Spring Switch Activator Pin – 010480009 | $1.00 | | ||
| | Lindhaus PB12″ Microswitch 020640000 | $16.60 | | ||
| | 117. Lindhaus PB12″ Screw 2.2×16 (Single) – 086950009A | $7.60 | | ||
 | 118. Lindhaus PB12″ Circuit Board M30 (12″) – 020610000 | $62.00 | | ||
| | 119. Lindhaus PB12″ Exhaust Filter – 010720316 | $4.40 | | ||
| | 120. Lindhaus PB12″ Filter Brush Motor – 010580016 | $8.40 | | ||

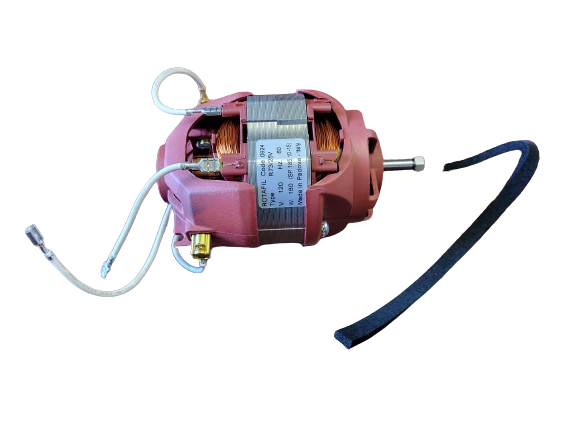

 | 121. Lindhaus PB12″ Brush Motor 100/120v (12″-14″) – 050030080 | $148.00 | | ||
| | 122. Lindhaus PB12″ Pinion+nut Complete – 182730081 | $8.72 | | ||
| | 125. Lindhaus PB12″ Screw 3.9×16 (Single) – 085560009A | $7.60 | | ||
| | 126. Lindhaus PB12″ Timing Belt 7mm – 010790300 | $16.00 | | ||
| | 127. Lindhaus PB12″ Transmission Support With Bearings – 181570029 | $33.60 | | ||
| | 128. Lindhaus PB12″ Pulley With Shaft – 060290081 | $34.80 | | ||
| | 129. Lindhaus PB12″ SIDE LIGHT COVER – 009044146 | $16.00 | | ||
| | 130. Lindhaus PB12″ Drive Joint Base – 088620081 | $10.00 | | ||
| | 131. Lindhaus PB12″ Brush Roller M30 (12″) 1 Bristle 0,25 Black + Insert [standard] – 009590301 | $38.00 | | ||
| | 132. Lindhaus PB12″ Roller Support M30 (12″) – 181670029 | $33.60 | | ||
| | 133. Lindhaus PB12″ Brush Shoe Plate M30 (12″) – 005860333 | $37.20 | | ||
| | 134. Lindhaus PB12″ Roller Cover Clip (Single) – 087491381A | $14.60 | | ||
| | 135. Lindhaus PB12″ Screw 3.5×9.5 Tg (Single) – 085540009A | $8.00 | | ||
| | 136. Lindhaus PB12″ Base Housing M30 (12″) Marble White With Clips – 087563681 | $78.00 | | ||
| | 137. Lindhaus PB12″ Bumper M30 (12”) Dark Gray – 000600112 | $29.80 | | ||
| | 138. Lindhaus PB12″ Front Axle – 011320029 | $23.40 | | ||
| | 139. Lindhaus PB12″ Front Wheel Rubber – 002260000 | $5.60 | | ||
| | 140. Lindhaus PB12″ Spring (Axle) – 010430009 | $1.20 | | ||
| | 141. Lindhaus PB12″ Spring Stop Plate – 000680036 | $0.50 | | ||
| | 142. Lindhaus PB12″ Brush Height Adjuster – 000990305 | $7.40 | | ||
| | 143. Lindhaus PB12″ Adjusting Knob Dark Grey – 003750104 | $10.60 | | ||
| | 144. Lindhaus PB12″ Rear Axle – 011380009 | $13.00 | | ||
| | 145. Lindhaus PB12″ Rear Big Wheel Rubber – 002270000 | $7.80 | | ||
| | 146. Lindhaus PB12″ Wheel Retainer Cap – 012840009 | $1.00 | | ||
| | 149. Lindhaus PB12″ Blocking Joint Quick Release – 005930305 | $5.60 | | ||
| | 151. Lindhaus PB12″ Felt Ring – 010980017 | $1.60 | | ||
| | 153. Lindhaus PB12″ Transmission Support [complete] – 181590029 | $75.60 | | ||
| | Lindhaus PB12″ Screw 2.9×16 (Single) – 085610009A | $8.60 | |
