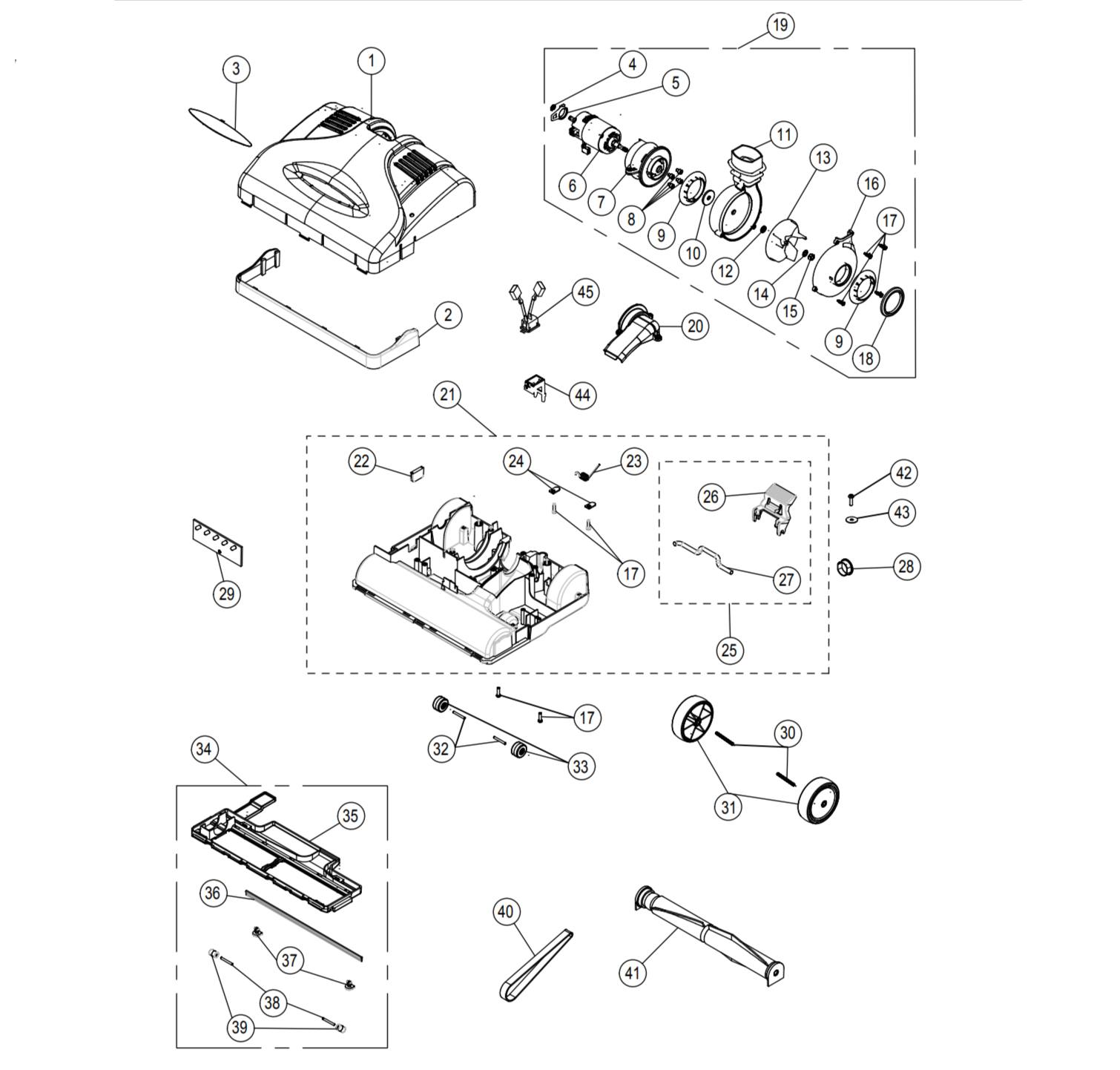

Cleanmax Model ZM-800 Nozzle Assembly Parts
01. Nozzle Cover B220-244602. Black Furniture Guard (ZM 800, ZM-800.2, ZM-800.4) B220-261403. Lens B018-041504. E Clip for Motor Shaft A732-300005. Motor Support Boss B223-2814C06. Motor Order #1907. Motor Housing B223-011408. Screw M5 X 6mm Socket A733-500009. Pivot Bushing B220-441410. Felt Pivot Seal B220-450011. Scroll Housing Right B220-401412. Washer (Behind Fan) A733-330013. Motor Fan B220-431414. Washer .284 ID .472 OD .025 Thick A733-220015. Hex Nut A432-060516. Scroll Housing Left B220-411417. Pan Head Hi Lo Screw #8 X 5/8 A732-831418. Motor Inlet Seal B480-451417. Pan Head Hi Lo Screw #8 X 5/8 A732-831417. Pan Head Hi Lo Screw #8 X 5/8 A732-831419. Motor Assembly D223-210009. Pivot Bushing B220-441420. Inlet Duct Cover B220-021421. Basetray Assembly D220-011422. Basetray Plug B016-191423. Upright Stop Spring B220-090024. Rear Axle Clamp 54.13625. Upright Stop Pedal Assembly D220-071426. Upright Stop Pedal B220-071427. Upright Stop Pedal Pivot B220-080028. Hole Plug A018-141429. LED PC Board Commercial B317-1150K30. Large Wheel Axle B010-2800C31. Rear Wheel C220-0531C32. Front Wheel Axle B010-0001E 33. Front Wheel With Bushing C010-2714B34. Baseplate Assembly D220-041435. Baseplate Order #3436. Squeegee B015-3000B37. Baseplate Cover Screw B220-041438. Baseplate Wheel Axle B370-170039. Baseplate Wheel B370-184340. Belt (2 pack) ULW-B241. Steel Agitator (ZM-800 and ZM-800.2) D012-230042. Combination Screw M4 X 12 ULW A732-250043. Strain Relief Washer B034-010044. Cradle for Isolator Switch (Used in ZM-800.6 only in the following serial number range Serial # 0518003442-0120007894) B223-291445. Rocker Isolator Switch Winged (Used in ZM-800.6 only in the following serial number range Serial # 0518003442-0120007894) A328-0900 Filters Sort results
Reset Apply
Image | Name | Description | Price | Quantity | Add to cart |
|---|---|---|---|---|---|

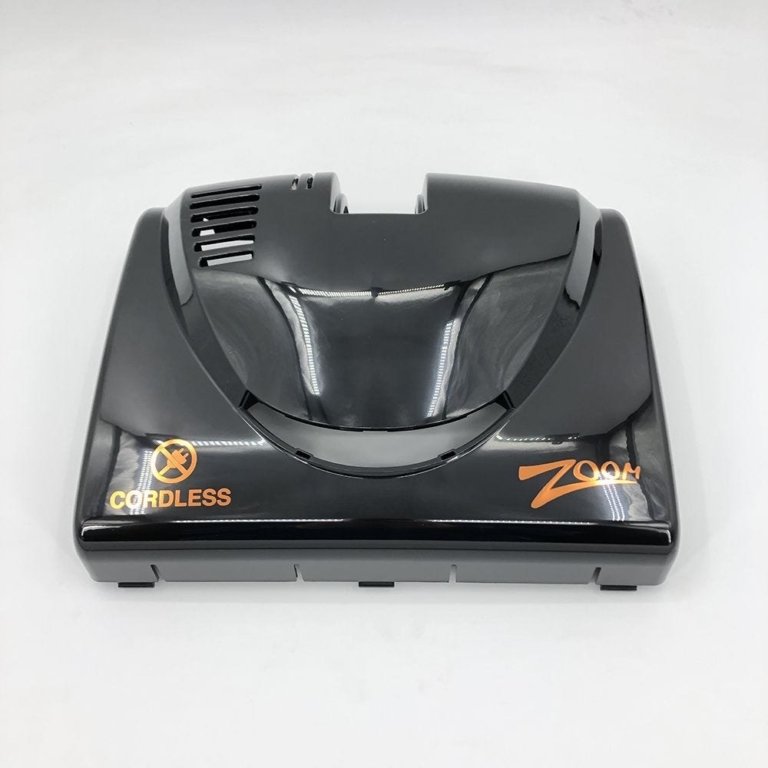

 | Nozzle Cover B220-2446 | $28.59 | | ||

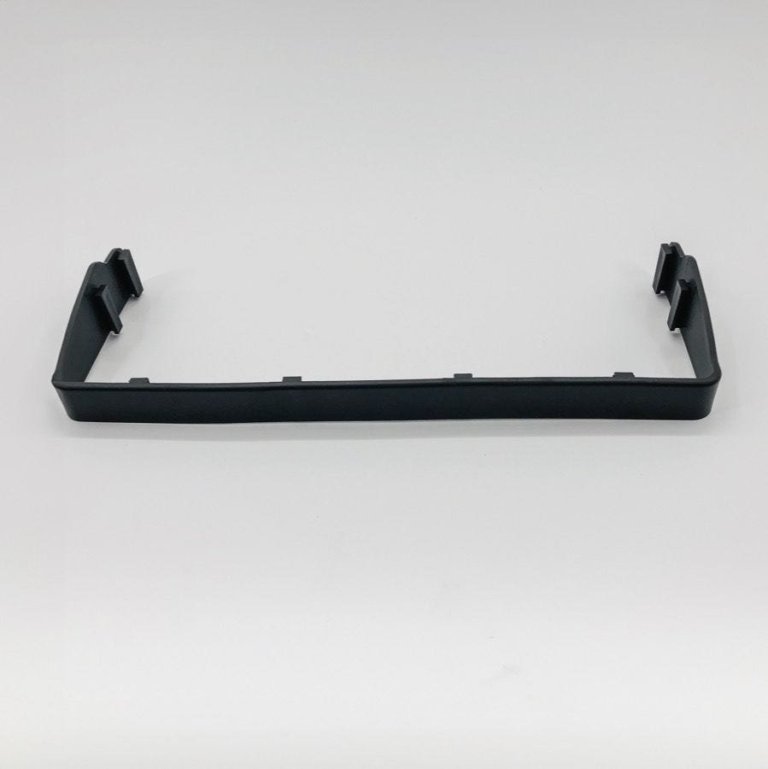

 | Black Furniture Guard (ZM 800, ZM-800.2, ZM-800.4) B220-2614 Clear Furniture Guard (ZM-800.6 and Above) B220-2600 | $6.59 | | ||

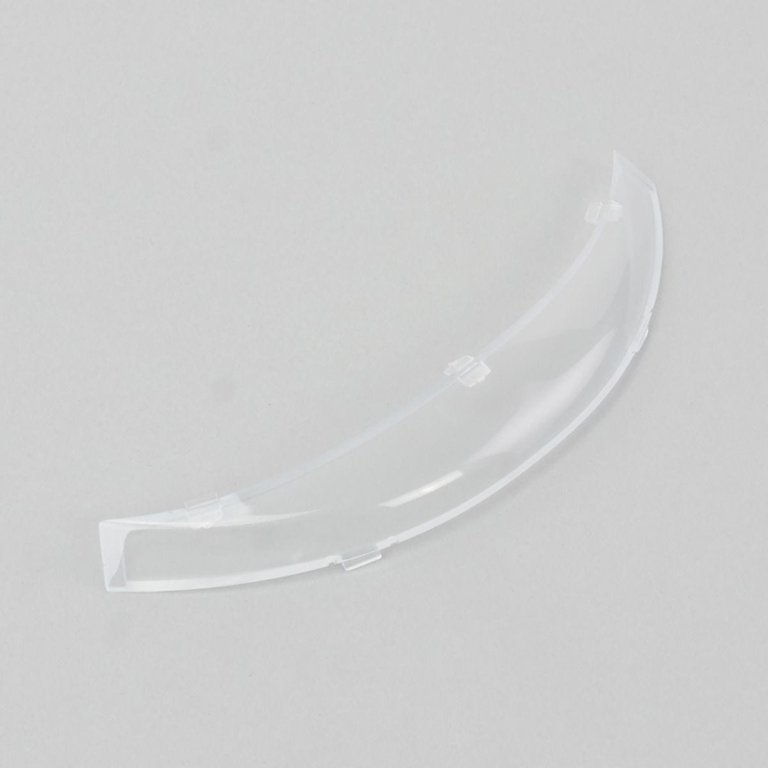

 | Lens B018-0415 | $3.29 | | ||
 | E Clip for Motor Shaft A732-3000 | $3.29 | | ||
 | Motor Support Base Belt Shaft B223-2814C | $3.29 | | ||
 | Motor Order #19 | $0.00 | | ||
| | Motor Housing B223-0114 | $13.19 | | ||

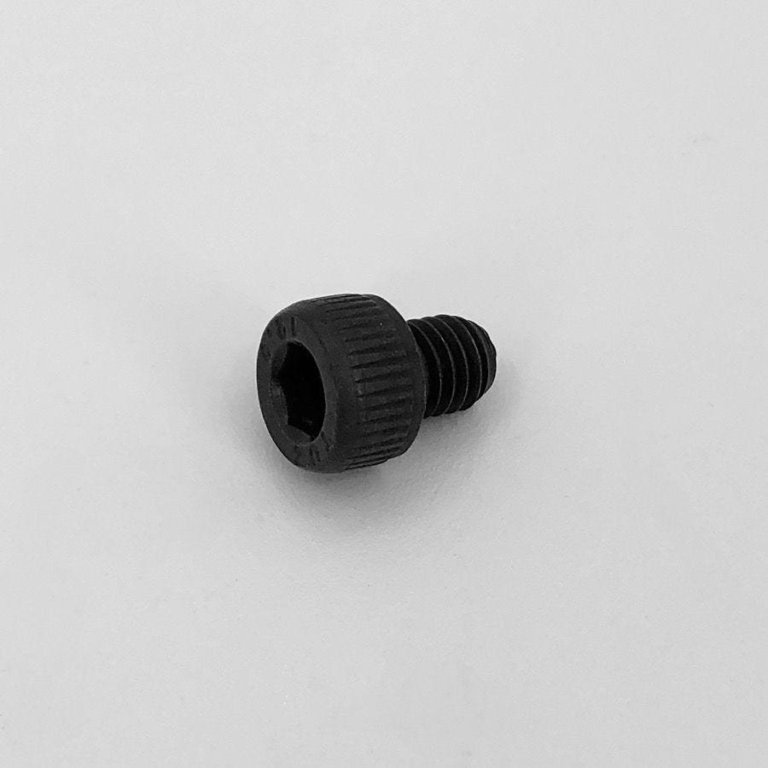

 | Screw M5 X 6mm Socket A733-5000 | $3.29 | | ||
 | Pivot Bushing B220-4414 | $3.29 | | ||
 | Felt Pivot Seal B220-4500 | $3.29 | | ||
 | Scroll Housing Right B220-4014 | $8.79 | | ||
 | Washer (Behind Fan) A733-3300 | $3.29 | | ||

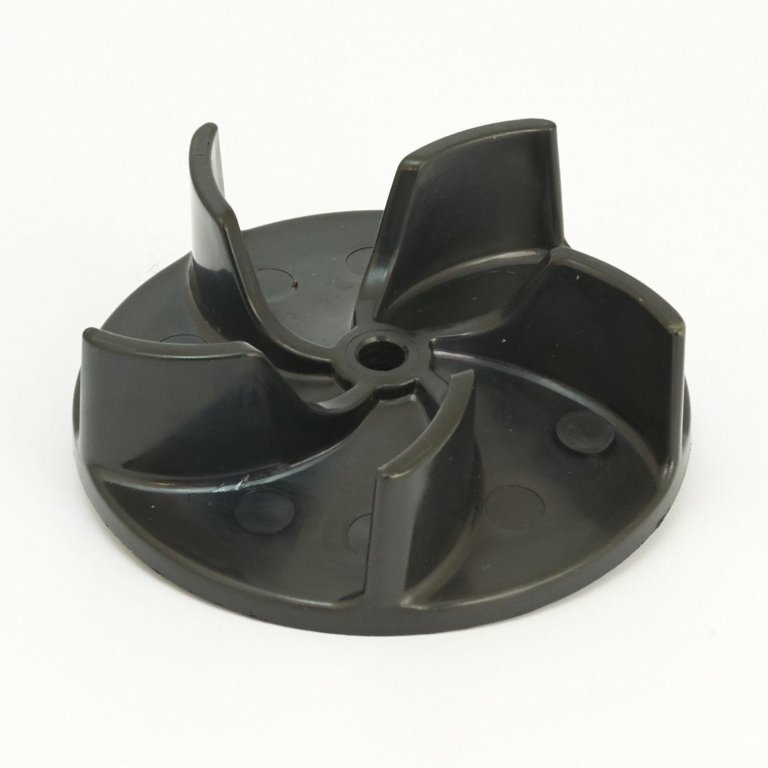

 | Motor Fan B220-4314 | $19.79 | | ||
 | Washer .284 ID .472 OD .025 Thick A733-2200 | $3.29 | | ||

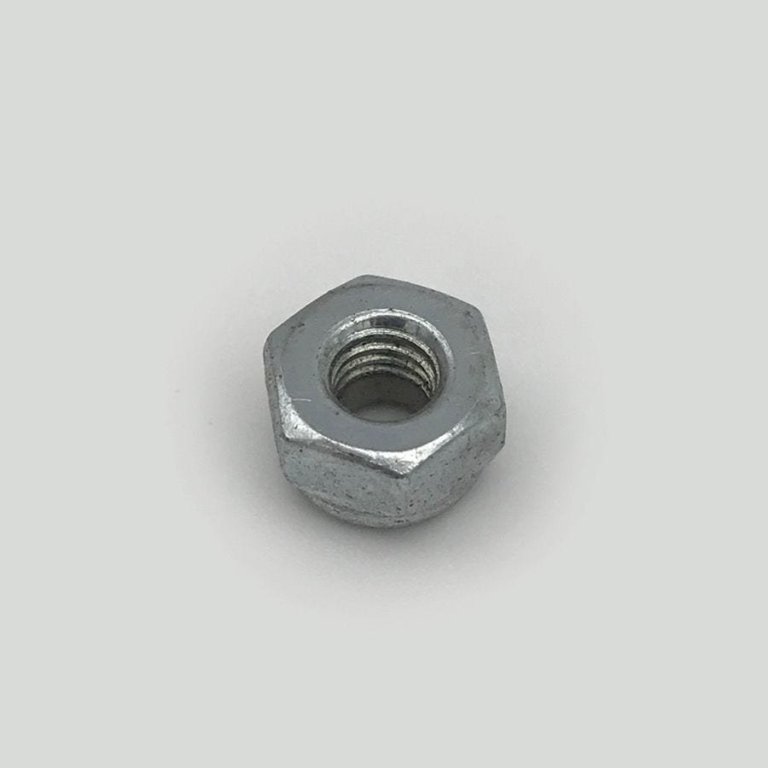

 | Hex Nut A432-0605 | $3.28 | | ||
 | Scroll Housing Left B220-4114 | $5.49 | | ||

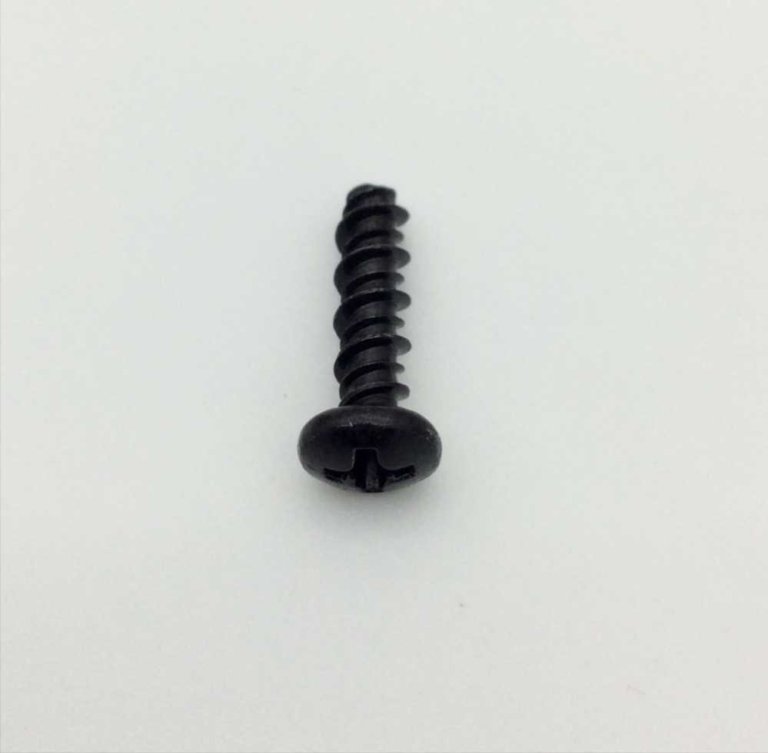

 | Pan Head Hi Lo Screw #8 X 5/8 A732-8314 | $3.29 | | ||

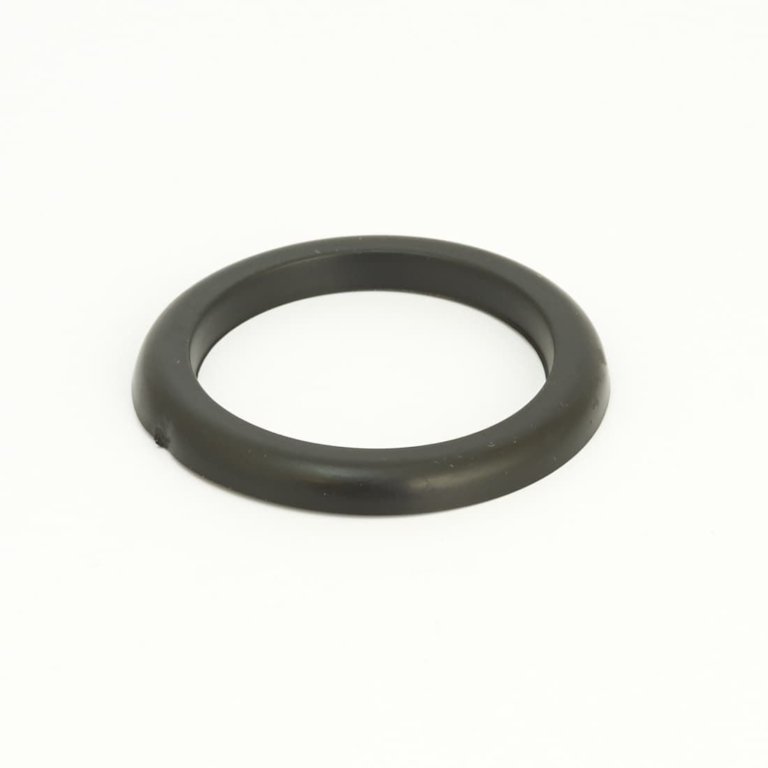

 | Motor Inlet Seal B480-4514 | $3.29 | | ||
| | Motor Assembly D223-2100 | $127.59 | | ||
 | Inlet Duct Cover B220-0214 | $4.39 | | ||
 | Basetray Assembly D220-0114 | $47.29 | | ||

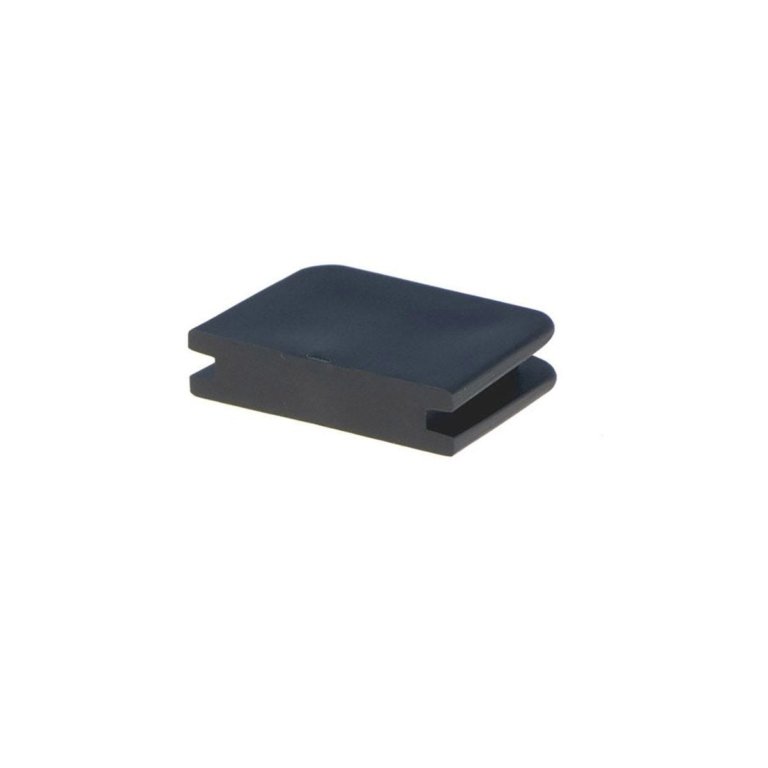

 | Basetray Plug B016-1914 | $3.29 | | ||
 | Upright Stop Spring B220-0900 | $3.29 | | ||

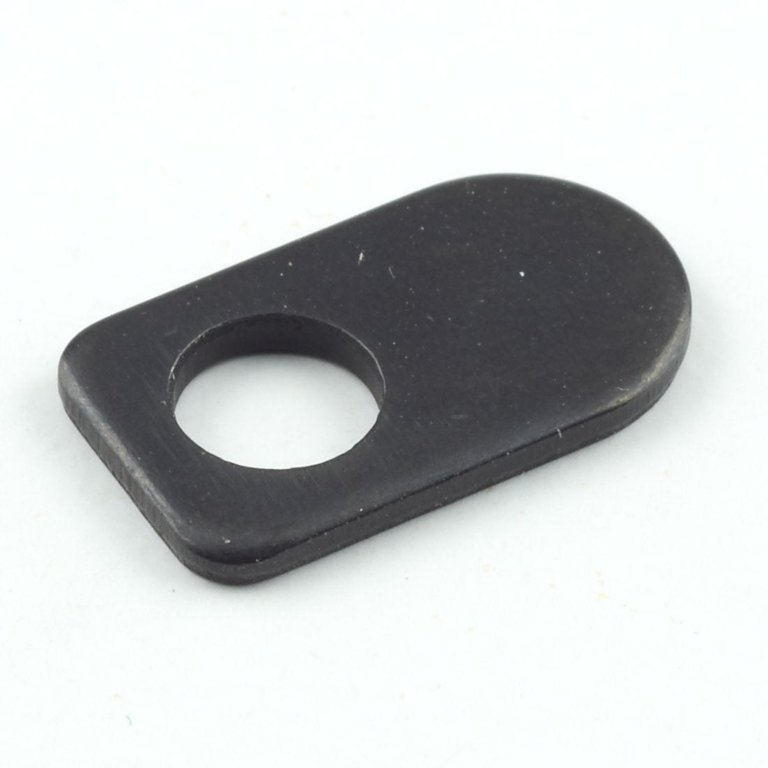

 | Rear Axle Clamp 54.136 | $3.29 | | ||
 | Upright Stop Pedal Assembly D220-0714 | $15.39 | | ||

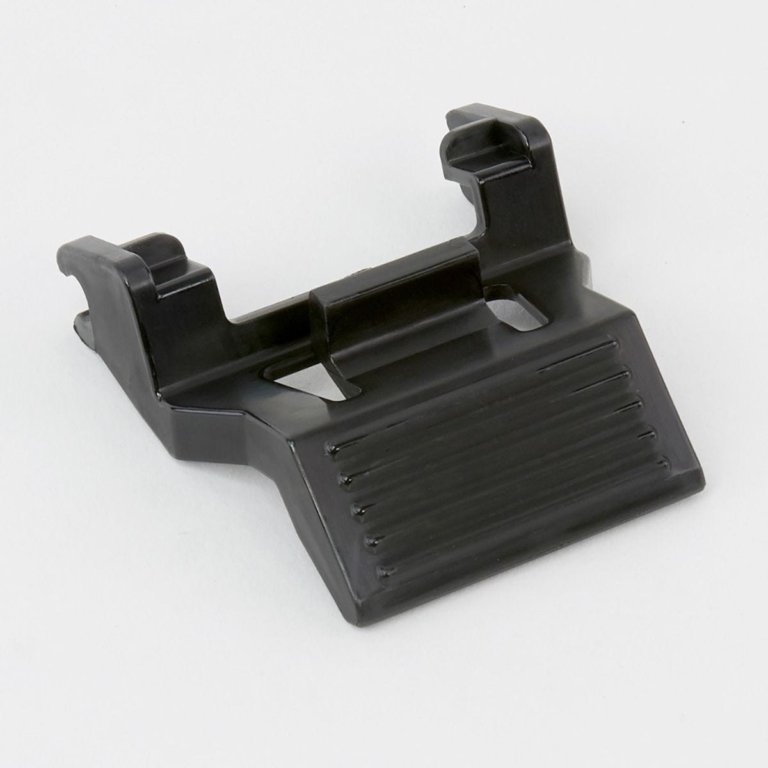

 | Upright Stop Pedal B220-0714 | $3.29 | | ||
 | Upright Stop Pedal Pivot B220-0800 | $4.39 | | ||
 | Hole Plug A018-1414 | $3.29 | | ||

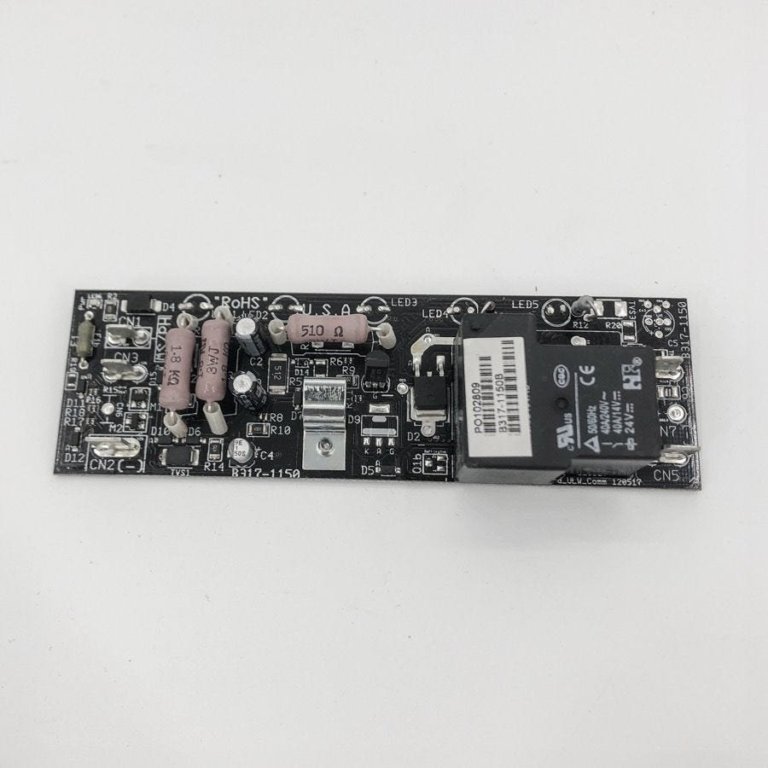

 | LED PC Board Commercial B317-1150K | $63.79 | | ||

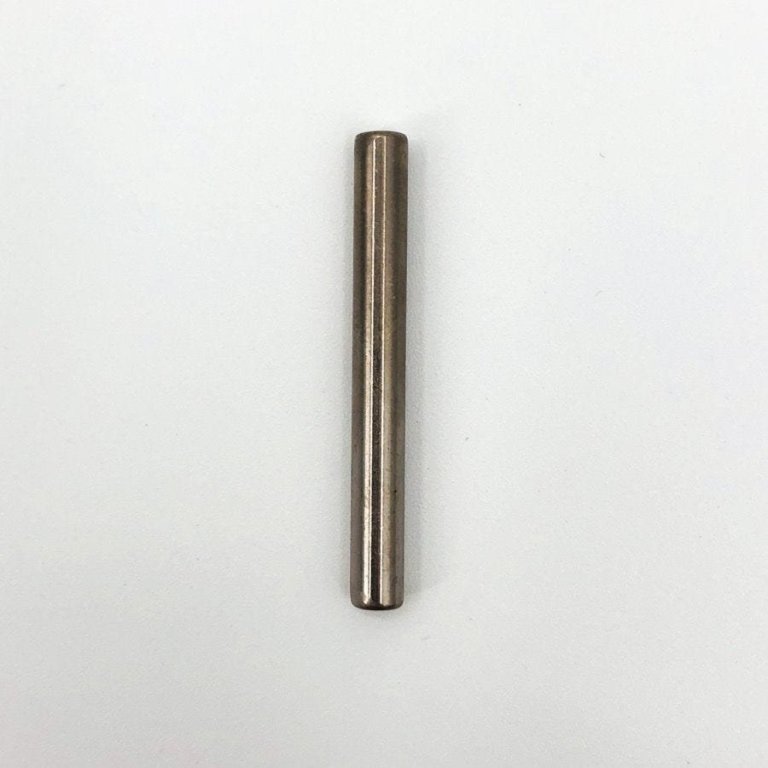

 | Large Wheel Axle B010-2800C | $3.29 | | ||
| | Rear Wheel C220-0531C | $5.49 | | ||
| | Front Wheel Axle B010-0001E | $3.29 | | ||
| | Front Wheel With Bushing C010-2714B | $3.29 | | ||
 | Baseplate Assembly D220-0414 | $17.59 | | ||
| | Baseplate Order #34 | $0.00 | | ||

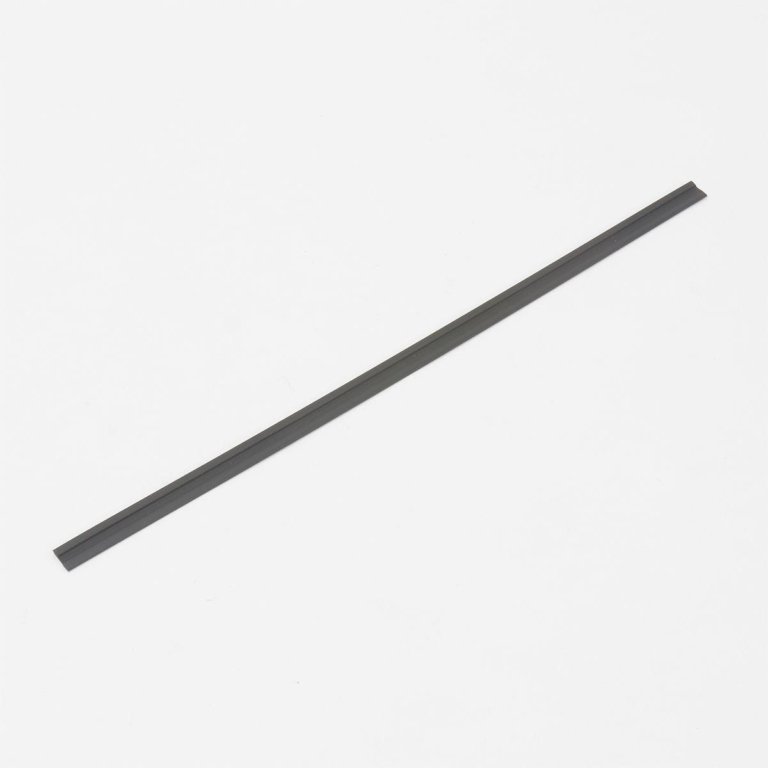

 | Squeegee B015-3000B | $2.19 | | ||
 | Baseplate Cover Screw B220-0414 | $3.29 | | ||
| | Baseplate Wheel Axle B370-1700 | $3.29 | | ||

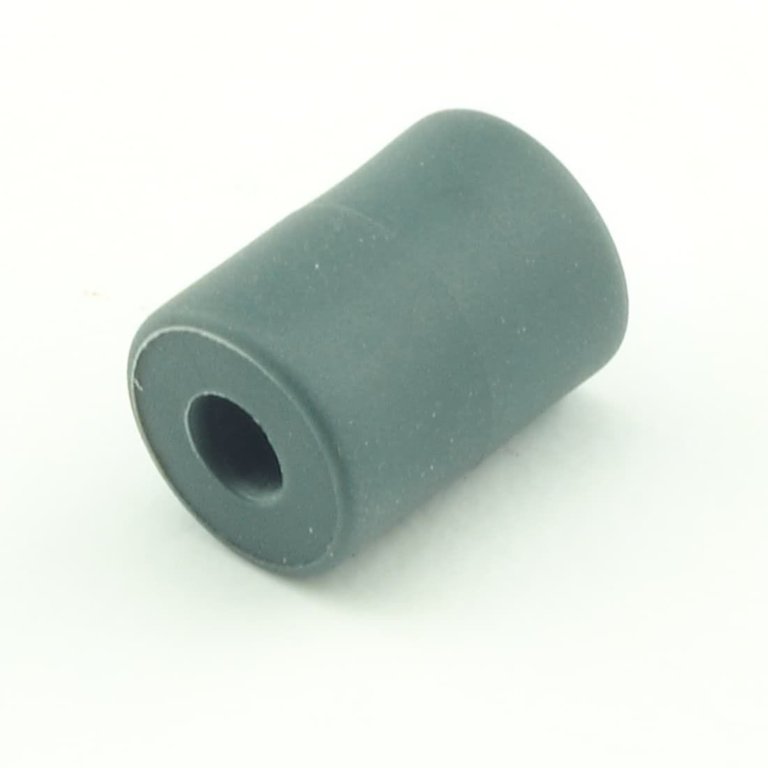

 | Baseplate Wheel B370-1843 | $3.29 | | ||

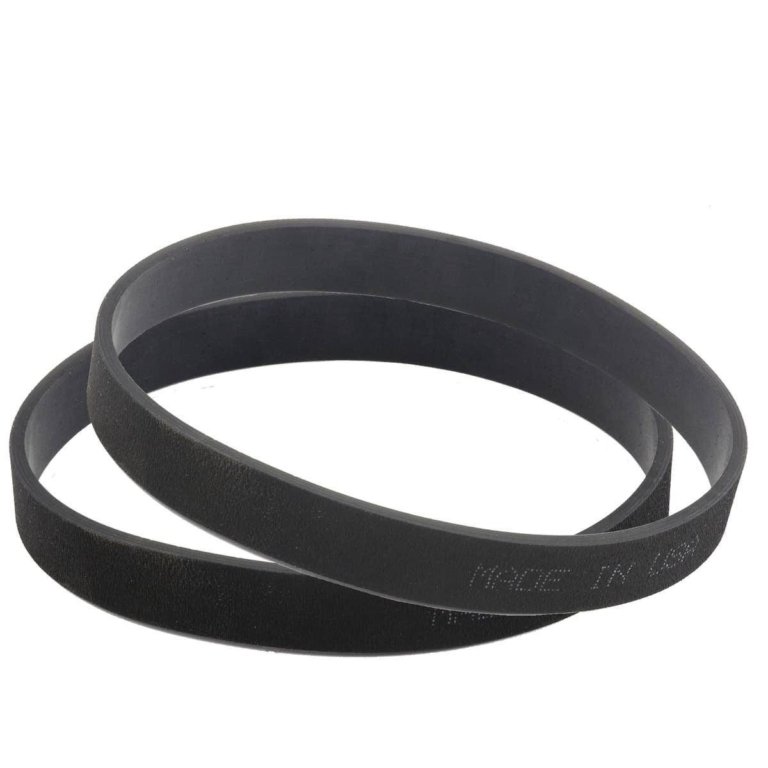

 | Belt (2 pack) ULW-B2 | $12.09 | | ||

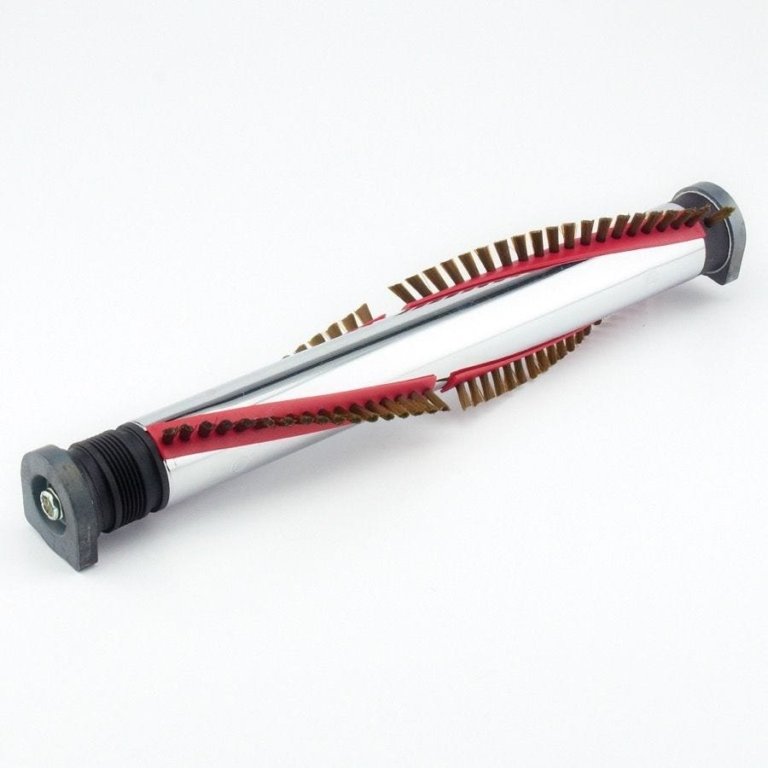

 | Steel Agitator (ZM-800 and ZM-800.2) D012-2300 Wood Agitator (ZM-800.4 And Above) D223-1700 | $39.59 | | ||
 | Combination Screw M4 X 12 ULW A732-2500 | $3.29 | | ||
| | Strain Relief Washer B034-0100 | $3.29 | | ||
 | Cradle for Isolator Switch (Used in ZM-800.6 only in the following serial number range Serial # 0518003442-0120007894) B223-2914 | $3.29 | | ||
| | Rocker Isolator Switch Winged (Used in ZM-800.6 only in the following serial number range Serial # 0518003442-0120007894) A328-0900 | $3.29 | |
