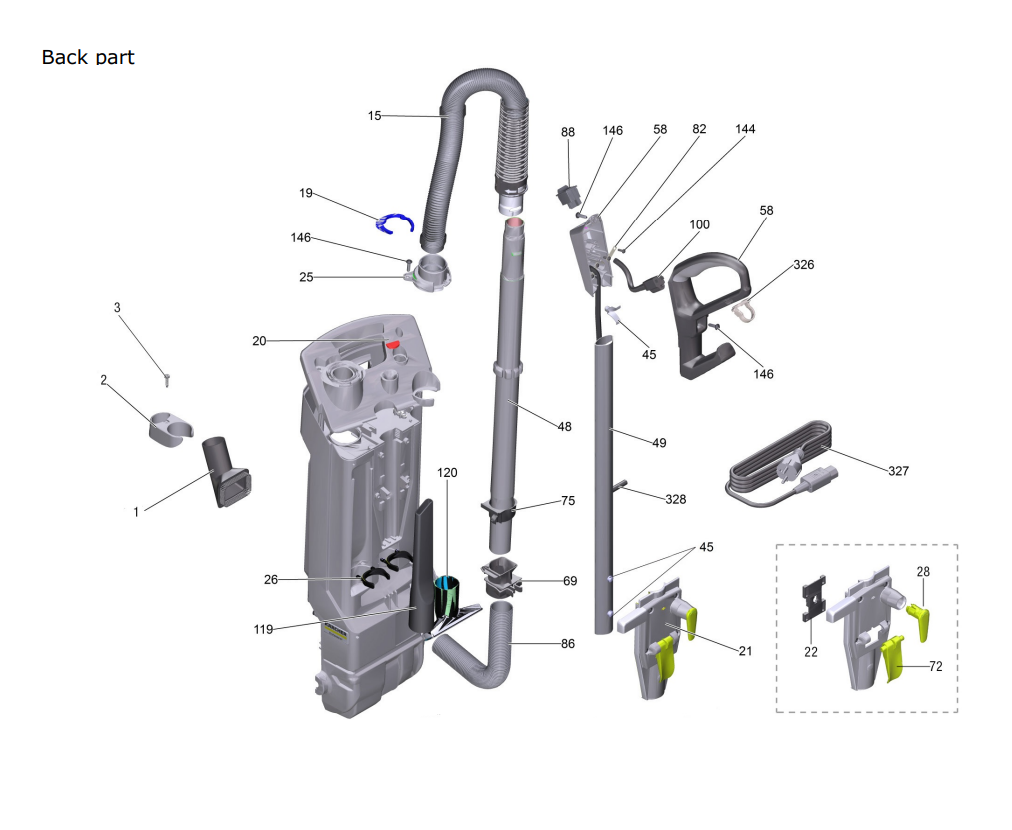

Tornado CVD 38 15″ Vacuum 91438 Back Part

Hotspot Background

144. SCREW 3,5X12 10.9 R2R (IN6RD)82. Clamp 58. Handhold, Complete (2 pieces) – All CVD Uprights 146. Screw M5 x 20 88. Rocker Switch 15. Suction Hose 19. Locking Ring 146. Screw M5 x 20 25. Connection Piece 20. Lens, Clear – All CVD Uprights 3. ACCESSORIES KIT CLAMP DUSTING BRUSH, SCREW, AND CLAMP 2. ACCESSORIES KIT CLAMP DUSTING BRUSH, SCREW, AND CLAMP 49. Handle Shaft, Replacement – All CVD Uprights 45. Spring, Handle – All CVD Uprights 146. Screw M5 x 20 326. Holder, Cable Lock, Pigtail/Ext. Cord – All CVD Uprights 58. Handhold, Complete (2 pieces) – All CVD Uprights 100. Cable, Power, Handhold, Pigtail Mail Plug – All CVD Uprights 1. ACCESSORIES KIT CLAMP DUSTING BRUSH, SCREW, AND CLAMP 26. Accessory Clip 119. Crevice Tool 86. Suction Hose 69. Wand Sleeve 75. Suction Tube Ring 48. Wand 328. Cable, Power, Handle – All CVD Uprights 45. Spring, Handle – All CVD Uprights 21. Complete Cover 22. Clamp 72. Lever 28. Cord Hook 327. Cord, Power, 16/3 – 40′ Extension, RAL 1018 – All CVD Uprights 120. Upholstery Nozzle
